BOOSTER PUMP COMBO - Small Garden Application

Low-maintenance and easy operation

Making use of a peripheral pump and pressure controller to get a constant pressurised feed from your water tank. This pump combo supplies 2 bar pressure at a flow of 20 l/min and is ideal for a garden hose, tap or small irrigation applications.

The booster pump comes standard with a flow control switch that automatically starts the pumps when pressure decreases and stops it when there is no flow.

The LEO pump is very reliable and energy efficient.

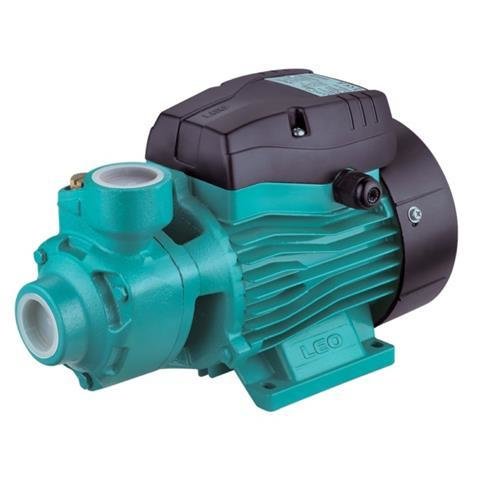

PUMP:

• Type - Peripheral
• Special anti-rust treatment for cast iron pump body and support
• Anti-block system for impeller
• Brass impeller
• AISI 304 stainless steel shaft
• Max. suction - 8m

MOTOR:

• Make - LEO
• Model - APm
• Power rating - 0.37kW (370 Watt) 220 Volt
• Phase - Single
• C&U bearing
• Motor with copper winding
• Built-in thermal protector (Single Phase)
• Insulation class - F
• Protection class IPX4
• Max. ambient temp - +40 *C

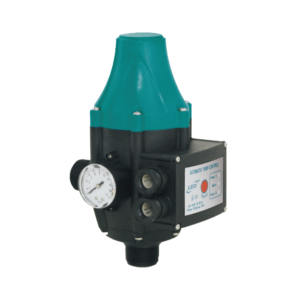

PRESSURE CONTROLLER:

• Automatic start & stop function
• Dry running protection
• Over current protection
• Starting pressure setting - 1,5bar
• Max Pressure - 10bar
• Connection thread - G1"
• Protection class - IP65

FLOW CHART & SPECIFICATIONS:

Download a printable flow diagram and specifications sheet - Click Here

WARRANTY:

LEO pump and controller come with a 2 year manufacturing warranty. (Terms & Conditions Apply)
