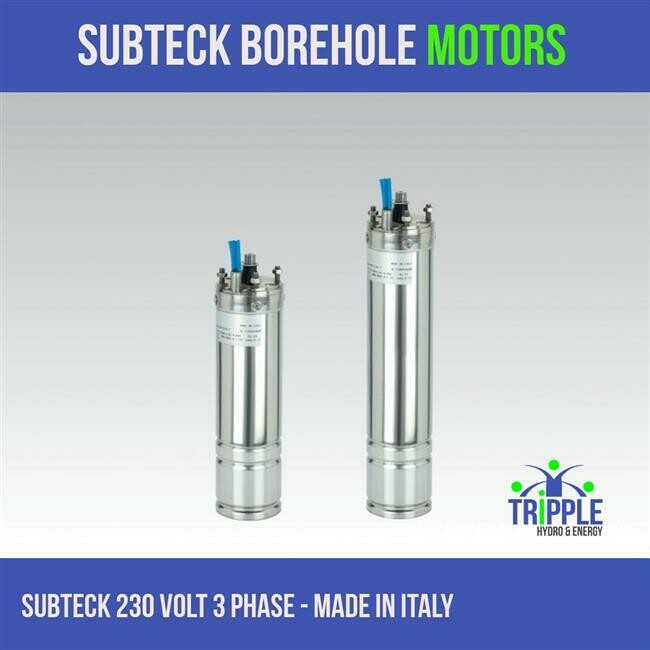

Subteck Oil Filled Motor - 1.1KW 220V - 3 Phase

Being manufactured with superior Subteck technology, VSM Oil Cooled 4 inch Submersible Motors are submersible motors those can be produced up to 7.5 kW. They are noise-free, oil-lubricated, durable and long-lasting motors that do not require periodic maintenance. The VSM Submersible Motor can operate without being affected by the slope of the well. It is suitable to work both vertically and horizontally. It has a stainless steel body and a stainless steel shaft. Its flange and shaft end are in Nema standards and it can operate smoothly with all suitable submersible pumps. VSM of 4 " motors are available in both single-phase and three-phase models. Models in the range of 0,5 - 3 HP (0,37 -2,2 kW) in the case of single-phase and models in the range of 0,75 - 10 HP (1 - 7,5 kW) in the case of three-phase are available. Each submersible electric motor is tested and passed through standart quality control procedures.

Features

• Standard voltage 380/460V - 50/60Hz (Allowable voltage tolerance ± 10%)
• High efficiency provides operation cost savings
• Oil coolant system
• Flange with NEMA standards
• Stainless steel shaft
• Max. ambient water temperature 30°C
• CW & CCW direction of rotation
• Our motors can be operated horizontally in pools and wells which are not deep enough
