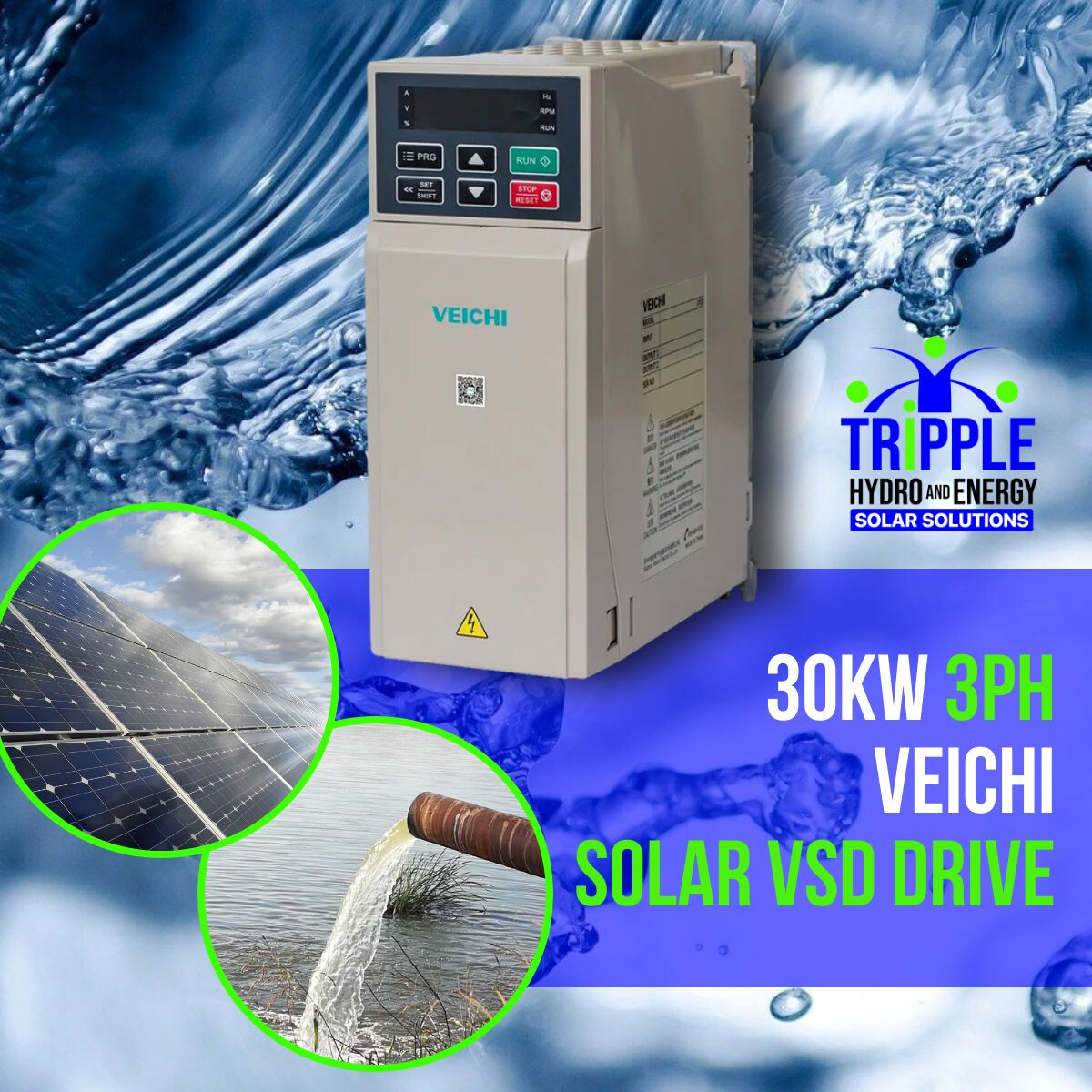

VEICHI 30kW THREE PHASE 380V SOLAR VSD (SOLAR PUMP DRIVE - VFD)

The Veichi SI 23 Three-Phase Variable Speed Drive exemplifies precision and efficiency in power control. Engineered with advanced technology, this drive offers seamless three-phase motor control with unparalleled accuracy. Its versatile features empower users to fine-tune motor speeds, optimize energy consumption, and ensure optimal performance across a spectrum of industrial applications. Elevate your industrial and irrigation projects with the Veichi SI 23 Three-Phase Solar Variable Speed Drive. This cutting-edge solution delivers dynamic motor management, enabling precise control over three-phase motors. Equipped with intelligent algorithms and a user-friendly interface, it facilitates seamless adjustments to motor speeds, torque, and acceleration, ensuring optimal efficiency.

The Veichi Solar VSD drive is packaged into an all-weather enclusure with built-in protection. The options available are; Off-Grid and grid or generator inputs. (Manual Switching)

This video explains the setup and parameter settings on the Veichi drives

PRODUCT OVERVIEW

The VSD Panel comes complete with a VEICHI Solar VSD Drive, All-weather enclosure, Line filter/reactor, Search arresting & Fuses.

*(Excludes - Pump & Motor, Submersible Cable, Solar Panels, PV Combiner, Panel Frames or Rails & Fittings)

• GPRS remote transmission technology.

(Please Note: GPRS Module is not included select option at checkout)

INCLUDED

• 30kW VEICHI Solar VSD Drive
• Search Arrestor
• DC | AC Fuses and Breaker (Where applicable)
• Built-in Line Filter - (Optional)

FEATURES & BENEFITS

• Dry-running protection
• High efficiency
• Over-voltage and under-voltage protection
• Overload protection
• Over-temperature protection
• Maximum Power Point Tracking (MPPT)
• DC & AC Input Options (Auto Switching)
• Level Probe inputs
• Remote Monitoring Ports (Various Communications Solutions Available)

SOLAR PV CONFIGURATION (Depending Pump Size)

(Solar array factor in relation to motor size = 1.6) (Inland) (Coastal Factor = 2)

i.e. 3kW Motor x 1.6 Factor = 4800 Watt of solar panels needed

340W Renewsys Panels String of 16 in series

550W Mono Solar Panels String of 14 up to 15 in series

(Panels not included in this package)

Should you need any assistance please contact one of our sales executives.

MOUNTING STRUCTURE CONFIGURATION (Not included)

(See panel configuration above - applicable to Panel size)

WARRANTY

1 Year Manufacturers Warranty on Enclosure & Electronic components

Terms & Conditions apply

DOWNLOADABLE SPEC SHEET

Click here to download the specifications and product information

PUMP SIZING CALCULATIONS

Please make use of our well experienced team to assist with your design and suggested panel configurations for your project.

For assistance please complete the pump sizing information to assist with your specifications.

Click here - PUMP SIZING INFORMATION FORM
