18.5kW THREE PHASE 380V SOLAR DRIVE PANEL

Delta three phase Solar pumping systems are driven by a three phase solar VSD Drive with an integrated MPPT (maximum power point tracker) to convert DC input to maximum power output. The solar VSD Drive is used to convert DC power generated from the PV Modules to three phase 380V AC power to drive any Three Phase AC pumping system ranging from 750W to 440kW (submersible or surface pumps). The Maximum Power Point Tracking (MPPT) function ensures improved and overall system efficiency with the facility to adjust motor speed and startup voltages when specific speeds and pressure is required.(VSD Systems of up to 440kW can be supplied)

The DC VSD designed Panel offers Off-grid Solar conectivity but can easily be upgraded to hybrid functionality when required at a low premium. (3 phase 230V Options are also available)

PACKAGE OVERVIEW

The Solar VSD Panel comes complete with a Delta Solar VSD Drive, Pole or Wall Mountable DC/AC Enclosure, DC and AC Protection, Connection points for easy installation. Optional extra - built-in Line filter/reactor

*(Excludes - Pump & Motor, Submersible Cable, Solar Panels, Panel Frames or Rails & Fittings + Cabling)

INCLUDED IN THIS COMBO

• DC | AC Enclosure with External DC Disconnect (Upgrade options available)

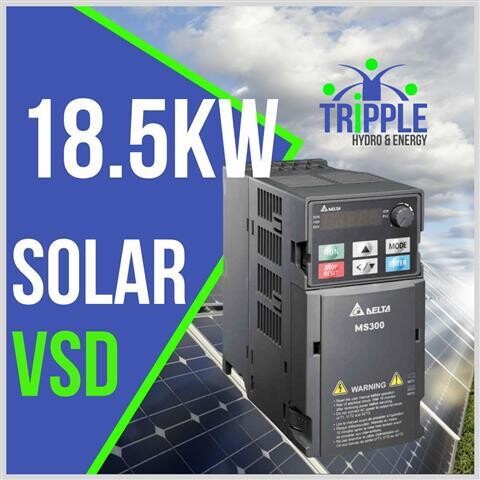

• Enclosure with 18.5kW Delta Solar VSD Drive
• DC Disconnect, DC/AC Protection
• PV Array required - 1:6 Wp (String Voltage - 750Volt Max VOC)

FEATURES & BENEFITS

• Dry-running protection
• High efficiency
• Over-voltage and under-voltage protection
• Overload protection
• Over-temperature protection
• Maximum Power Point Tracking (MPPT)
• DC & AC Input Options (Auto Switching - Upgrade)
• Level Probe inputs
• Remote Monitoring Ports (Various Communications Solutions Available)

SOLAR PV CONFIGURATION

16 x Renewsys 335W A Grade (Poly) Multi Crystalline Solar Panels.

MOUNTING STRUCTURE CONFIGURATION (Not included)

1 x 16 Panel Ground Mount or Roof Rail Mounting System

WARRANTY

2 Year Manufacturers Warranty on VSD Drive & Electronic components

1 Year Manufacturing Warranty on all Electrical components

Terms & Conditions apply

DOWNLOADABLE SPEC SHEET

Click here to download the specifications and product information

PUMP SIZING CALCULATIONS

Please make use of our well experienced team to assist with your design and suggested panel configurations for your project.

For assistance please complete the pump sizing information to assist with your specifications.

Click here - PUMP SIZING INFORMATION FORM
